Product Features
SWaP Optimized
Ultra-compact size: 25.4 × 25.4 × 14.1 mm
Ultra-low power consumption: as low as 0.8 W
Clear Imaging & Accurate Temperature Measurement
Next-generation image algorithms including NUC / 3DNR / DNS / DRC / EE
-20°C to 150°C, 0–550°C, customizable extended temperature measurement ranges supported
Fast Integration
Multiple image output interfaces: USB 2.0 / DVP / LVDS
Temperature-measurement version provides SDKs for ARM / Windows / Linux, supporting full-frame temperature measurement
Applications

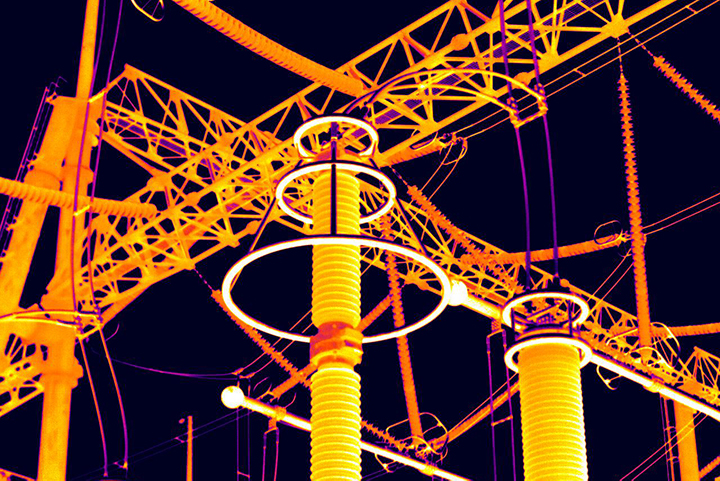

Industrial Temperature Measurement
Security Surveillance

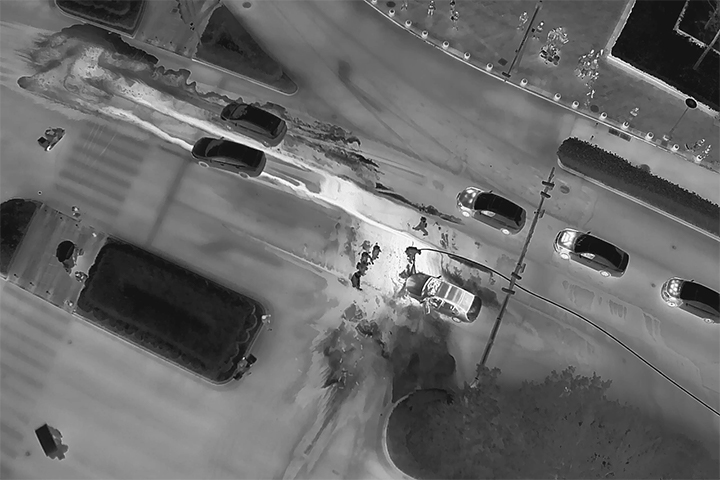

UAV Payload
Night Vision Observation
Technical Specifications

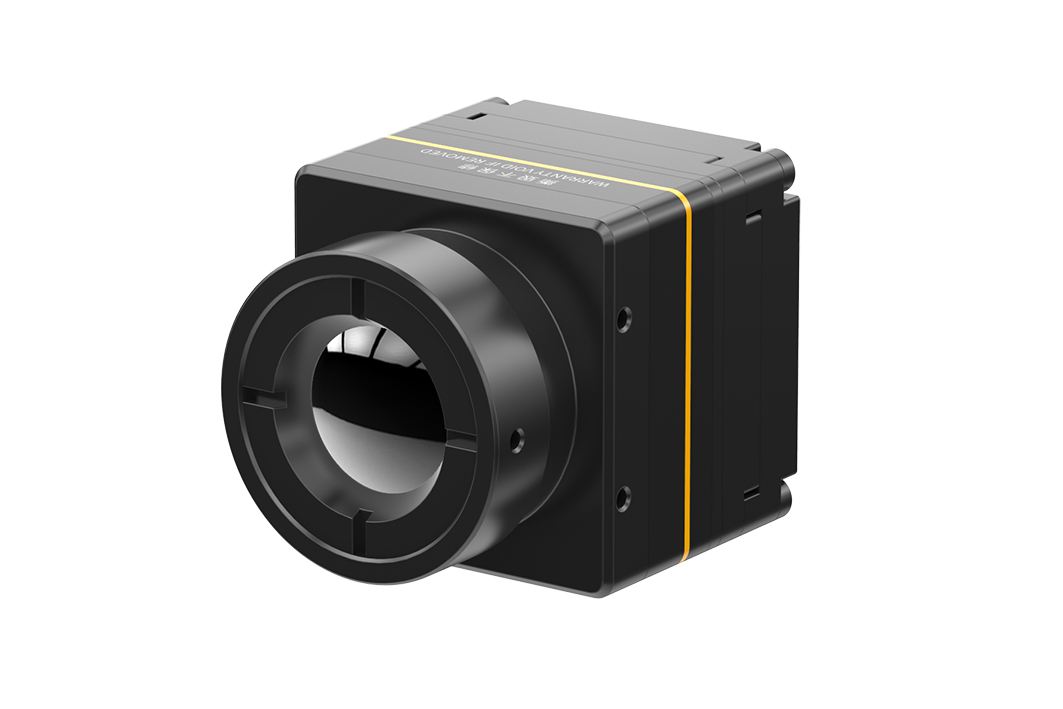

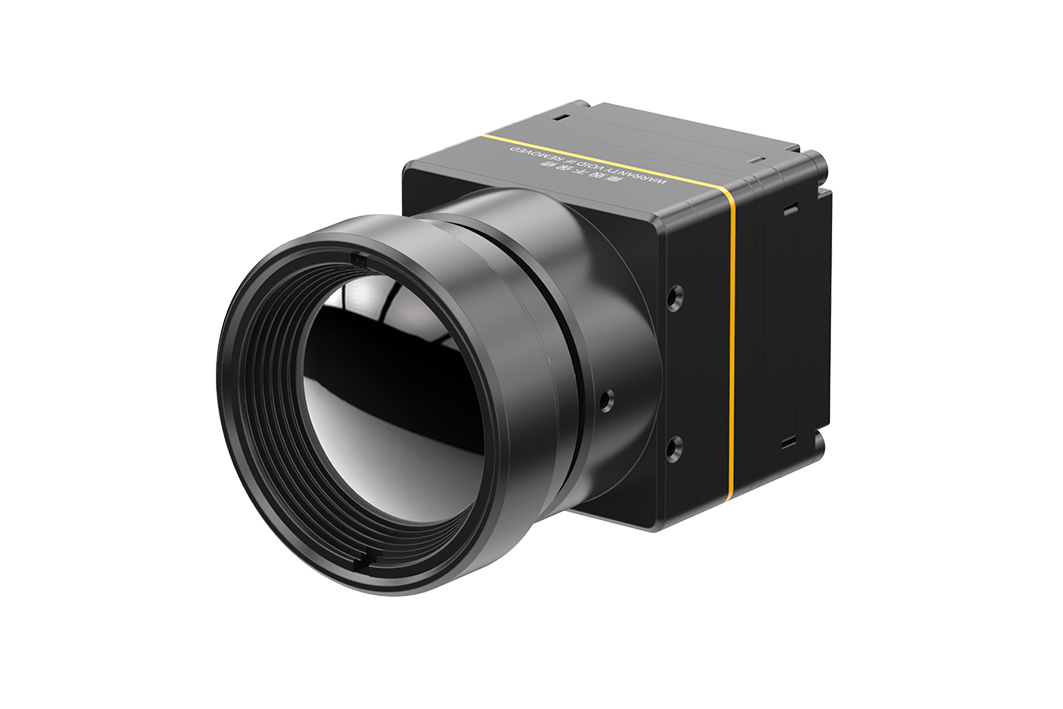

| Product Model | COIN612/R Uncooled Infrared Core |
| Detector Performance | |
| Sensing Material | Vanadium Oxide (VOx) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm ~ 14 μm |
| Typical NETD | ≤ 40 mK |
| Image Processing | |
| Digital Frame Rate | 25 Hz / 30 Hz |
| Startup Time | 5 s |
| Analog Video | PAL / NTSC |
| Digital Video | RAW / YUV / BT.656 |
| Image Algorithms | Non-Uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | White Hot / Black Hot / Pseudo Color |
| PC Software | |
| ICC Software | Core control and video display |
| Electrical Characteristics | |
| Standard External Interface | 50-Pin HRS Connector: DF40C-50DP-0.4V(51), HRS, Male |

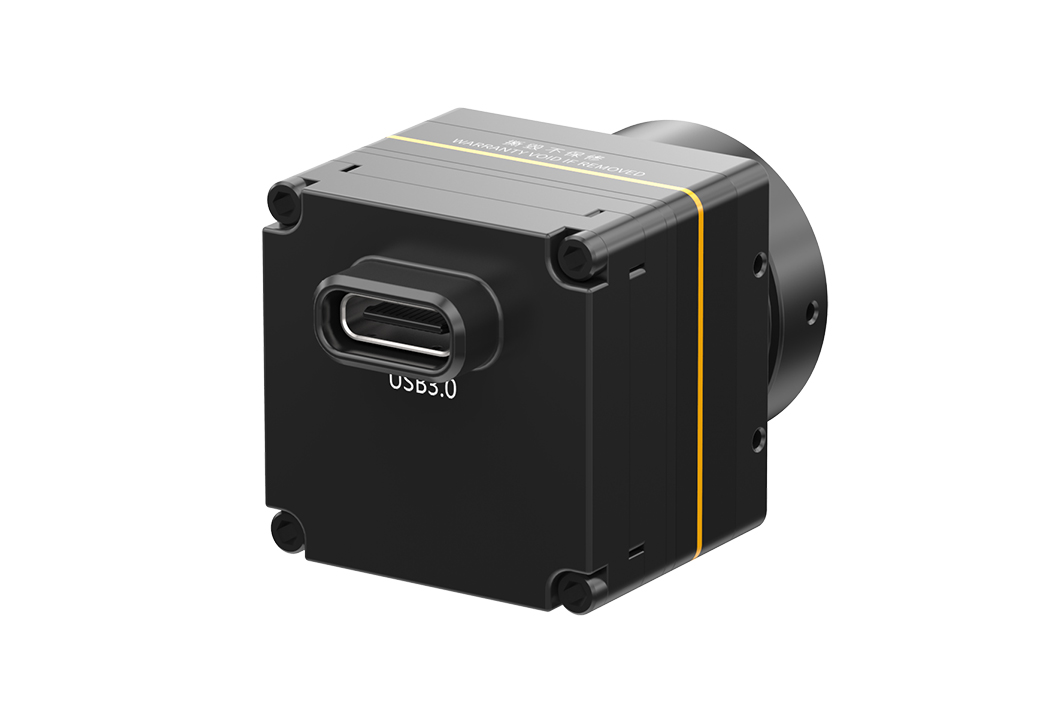

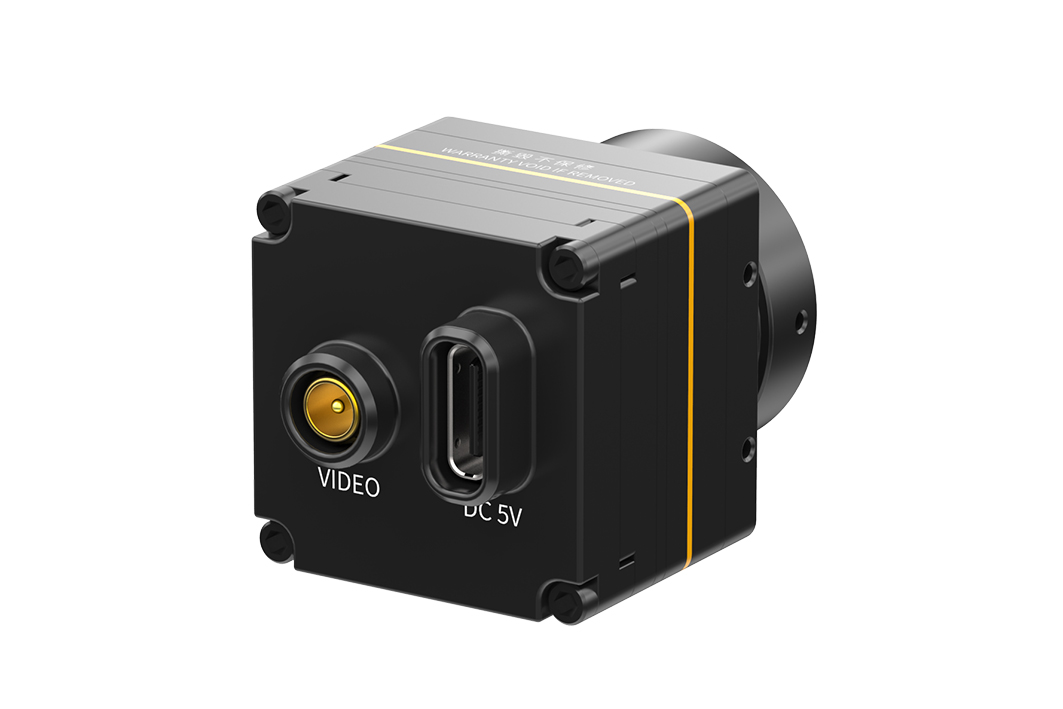

| USB Expansion Board | Type-C |
| Communication Interface | TTL-232 / USB 2.0 |
| Digital Video Interface | CMOS8 / CMOS16 / LVDS / USB 2.0 |
| Power Supply Range | 4 ~ 5.5 V |
| Typical Power Consumption | 0.8 W |
| Temperature Measurement | |
| Operating Temperature (Measurement) | -10°C ~ +50°C |
| Measurement Range | -20°C ~ 150°C, 0°C ~ 550°C, customizable extended ranges supported |
| Measurement Accuracy | ±3°C or ±3% (whichever is greater) |
| Area Measurement | Supports area temperature measurement; outputs maximum, minimum, and average values |
| SDK | Windows / Linux / ARM versions, supporting video stream parsing and grayscale-to-temperature conversion |
| Physical Characteristics | |
| Dimensions (mm) | 25.4 × 25.4 × 14.1 (bare core) |
| Weight | 11.5 g (bare core) |
| Environmental Specifications | |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5% ~ 95%, non-condensing |
| Vibration | 5.35 grms, 3 axes |
| Shock | Half-sine wave, 40 g / 11 ms, 3 axes, 6 directions |
| Certification | RoHS 2.0 / REACH |
| Optical Lens | |

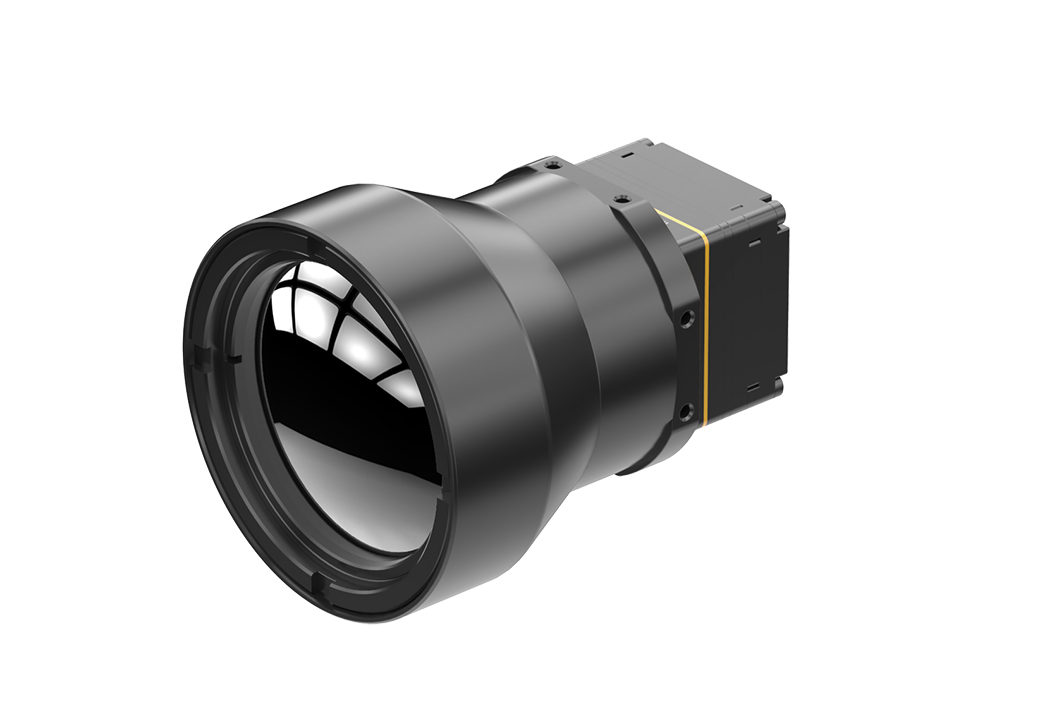

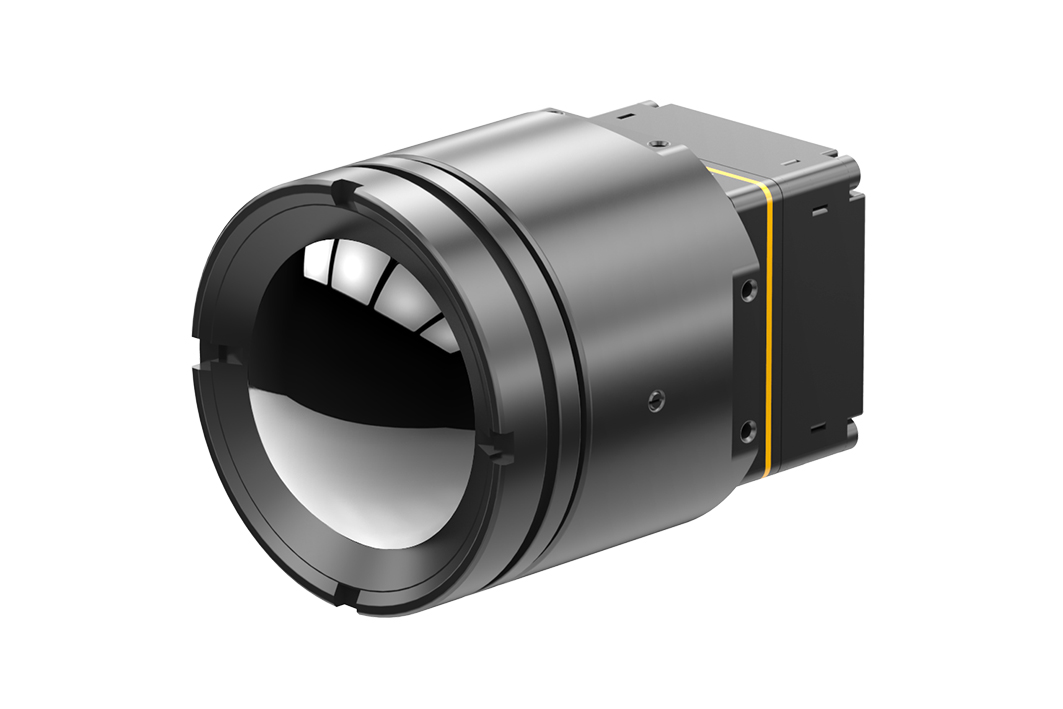

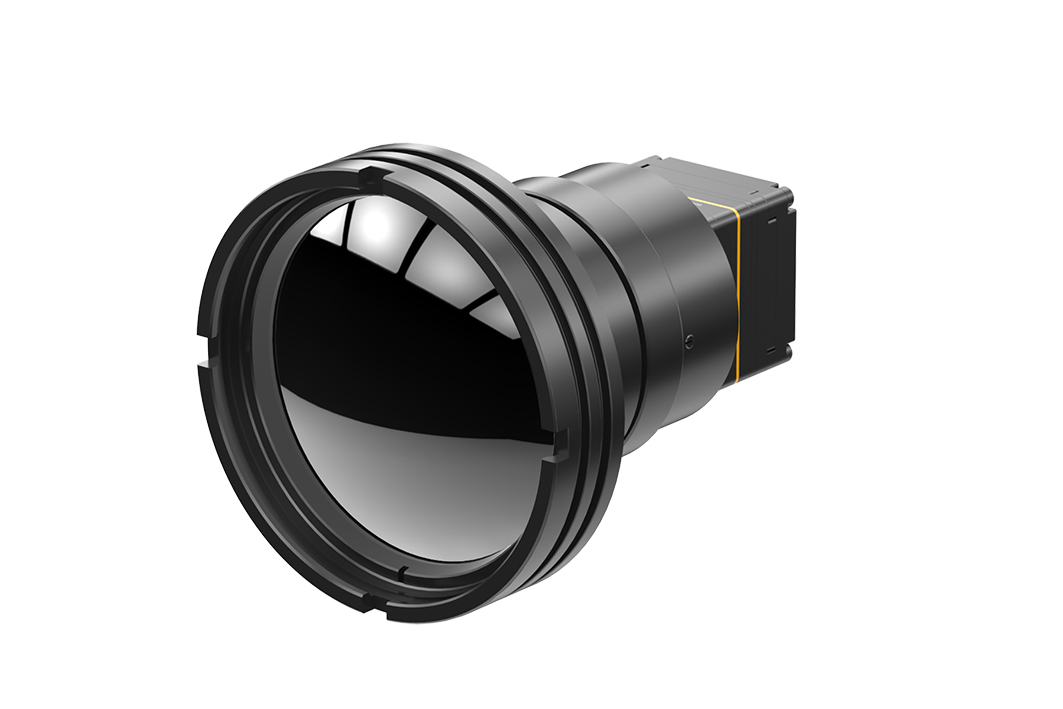

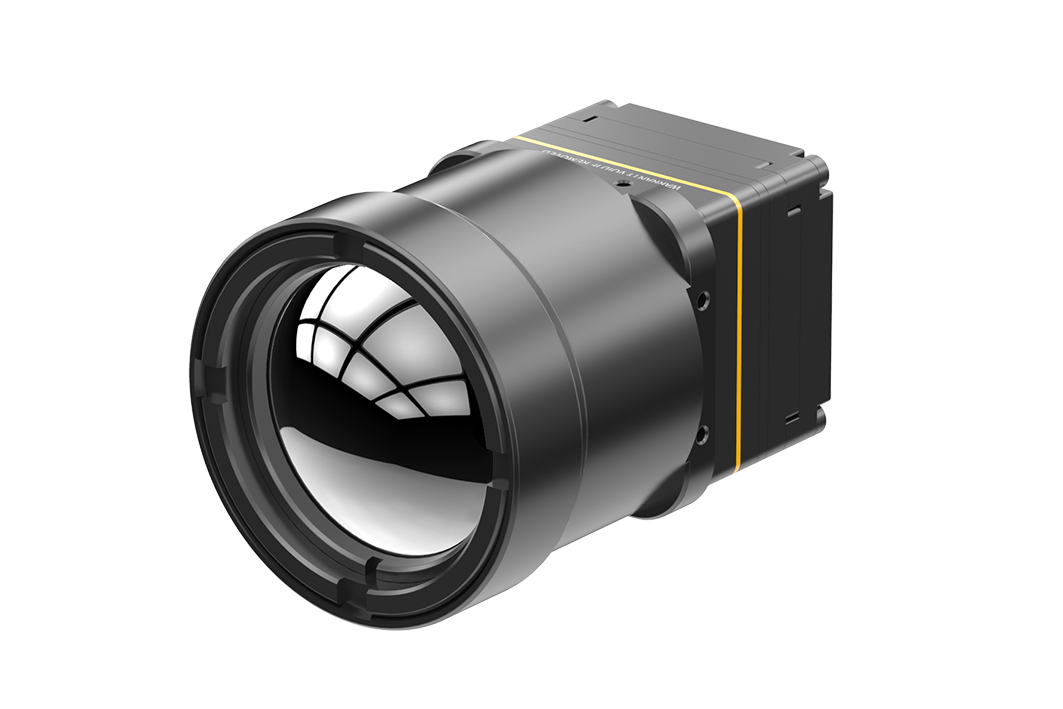

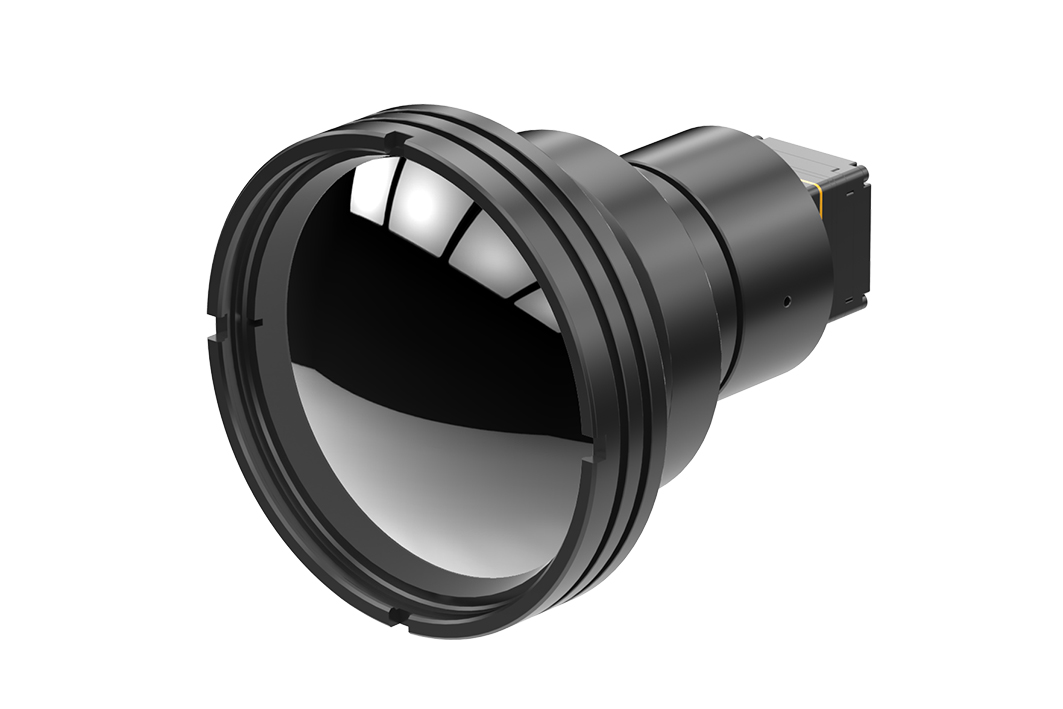

| Lens | Fixed-focus athermalized: 4.9 mm / 9.1 mm / 13 mm / 19 mm / 25 mm / 35 mm / 50 mm / 70 mm |
| Protection | Front lens IP67 |
