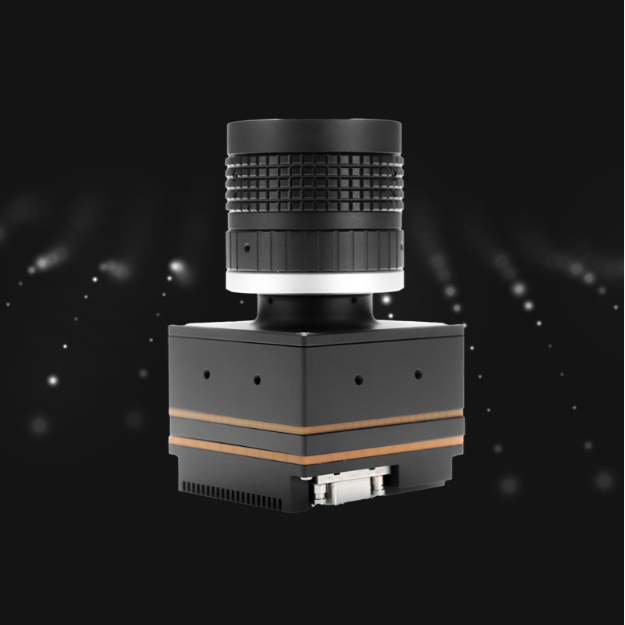

XH 640 × 512 High-Performance Short-Wave Infrared (SWIR) Core

XH 640 × 512 High-Performance Short-Wave Infrared (SWIR) Core

The product adopts a lightweight design and features high image frame rates and clear, fine imaging. It is widely used in semiconductor inspection, astronomical positioning, 3D printing, laser calibration, and intelligent driving applications.

分类：

Specifications:

Item
Specification
Detector TypeIndium Gallium Arsenide (InGaAs)
Resolution640 × 512
Pixel Pitch15 μm
Detector Frame Rate≤ 300 Hz
Spectral Range0.9–1.7 μm (extendable to 0.4–1.7 μm)
Dynamic Range≥ 70 dB
InterfaceCameraLink
Power Consumption ≤ 12 W
Weight≤ 200 g
Dimensions≤ 55 × 55 × 70 mm³
