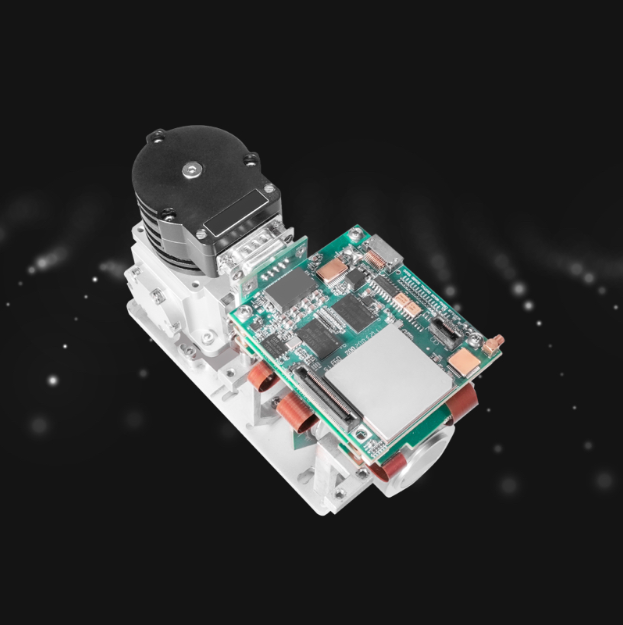

XH 640 × 512 Cooled Infrared Core

XH 640 × 512 Cooled Infrared Core

This product is a classic 1K cooled infrared core, featuring high sensitivity and stable performance. It is capable of delivering clear infrared images in complete darkness, dense fog, heavy snow, rain, sandstorms, and other harsh operating environments.

分类：

Specifications:

Item
Specification

Detector Type

Mercury Cadmium Telluride (MCT)

Resolution

640 × 512

Pixel Pitch

15 μm / 25 μm

Detector Frame Rate

≤ 200 Hz
Spectral Range3.7–4.8 μm
NETD
≤ 20 mK

Interface

CameraLink / SDI / PAL

Power Consumption

≤ 20 W

Weight

≤ 1.2 kg
Dimensions
≤ 120 × 50 × 50 mm³
