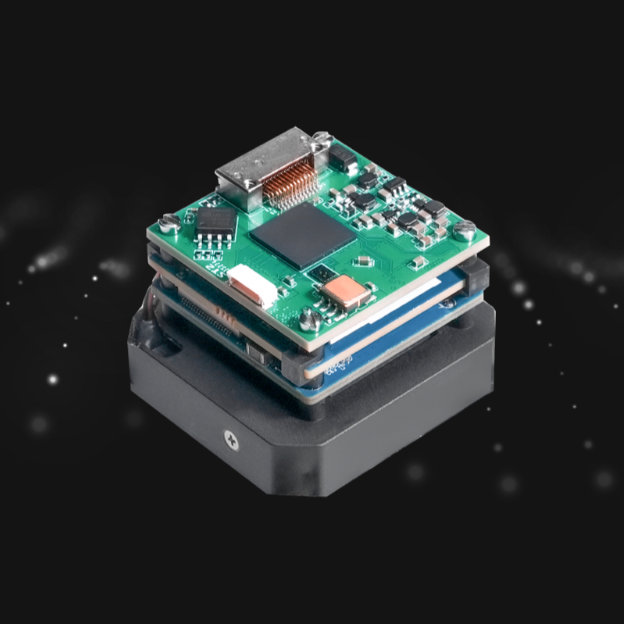

This product is a high-performance 1K uncooled infrared core, offering sharp images with clear details, strong environmental adaptability, and high reliability. It meets the HD thermal imaging requirements of industries such as power inspection, UAV payloads, and long-range surveillance.
Specifications:
| Item | Specification |
|---|---|
| Detector Type | Vanadium Oxide (VOx) |
| Resolution | 1280 × 1024 |
| Pixel Pitch | 12 μm |
| Detector Frame Rate | ≤ 50 Hz |
| Spectral Range | 8–14 μm |
| NETD | ≤ 50 mK |
| Interface | CameraLink / SDI |
| Power Consumption | ≤ 1.45 W |
| Weight | ≤ 95 g |
| Dimensions | ≤ 45 × 45 × 28 mm³ |
