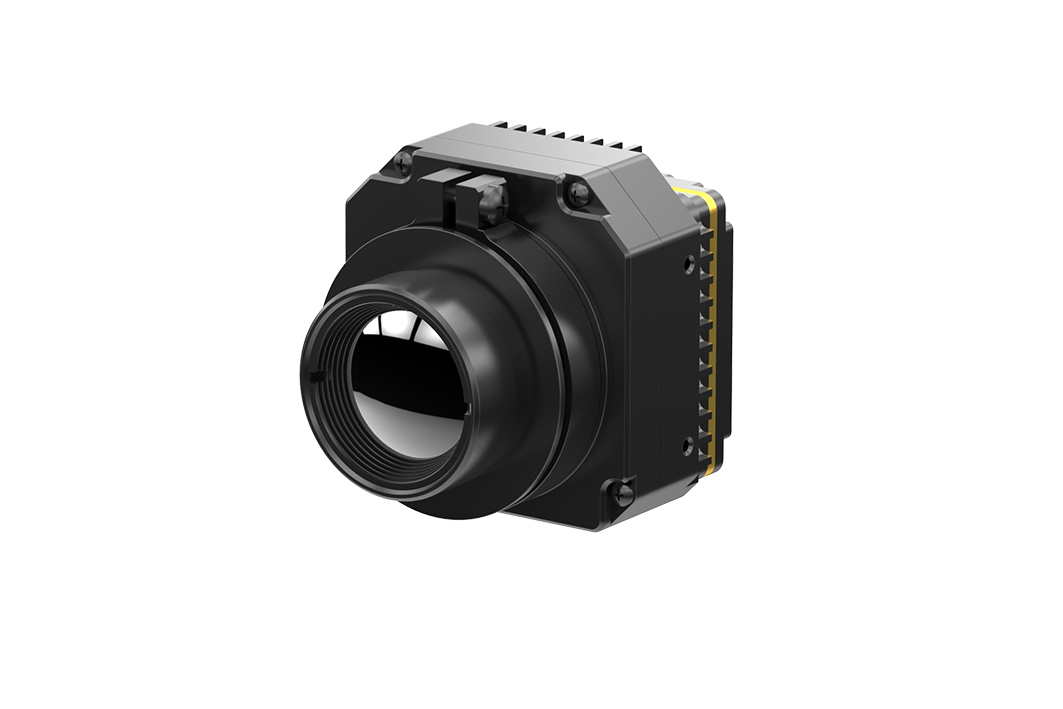

XH PLUG617 Uncooled Infrared Core
XH PLUG617 Uncooled Infrared Core - 图片 2
XH PLUG617 Uncooled Infrared Core - 图片 3
XH PLUG617 Uncooled Infrared Core - 图片 4
XH PLUG617 Uncooled Infrared Core - 图片 5
XH PLUG617 Uncooled Infrared Core - 图片 6
XH PLUG617 Uncooled Infrared Core - 图片 7
XH PLUG617 Uncooled Infrared Core - 图片 8
XH PLUG617 Uncooled Infrared Core - 图片 9
XH PLUG617 Uncooled Infrared Core - 图片 10

XH PLUG617 Uncooled Infrared Core

Plug-and-Play · Stable and Reliable

PLUG617 Uncooled Infrared Core
640×512 / 17 μm uncooled infrared detector + professional imaging readout circuitry + proprietary image processing algorithms = PLUG617 uncooled infrared core.
The high-reliability detector captures richer target information, while the professional hardware platform and imaging algorithms ensure clear imaging and accurate temperature measurement. With multiple industry-standard interfaces and a full range of optical lenses, it fully meets customized night vision and infrared temperature measurement requirements.

Resolution: 640 × 512

Pixel Pitch: 17 μm

Spectral Range: 8–14 μm

Typical NETD: < 30 mK

分类：
Key Features

Sharp Image Quality

640 × 512 resolution with a wide field of view
17 μm pixel pitch, high spatial resolution for long-range detection

Plug-and-Play, Easy Integration

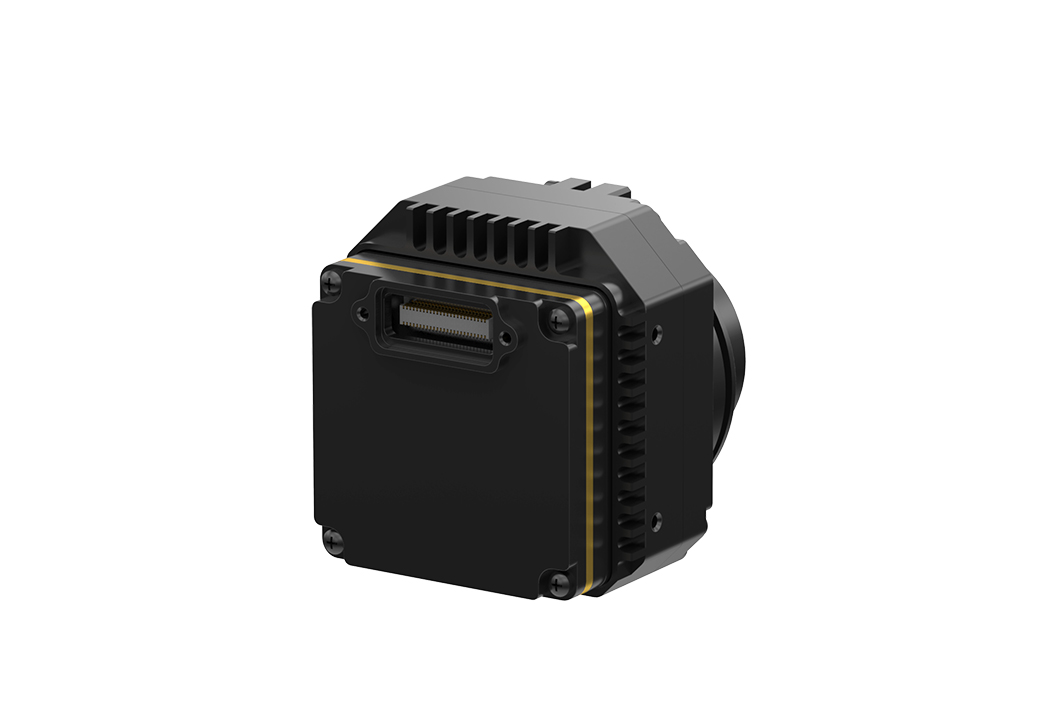

Standard 50-pin interface, multiple expansion boards available
Comprehensive SDK with continuous updates and optimization

Designed for Industrial Inspection & Thermography

High sensitivity, NETD < 30 mK
Optional temperature measurement with adjustable ranges

Application Scenarios

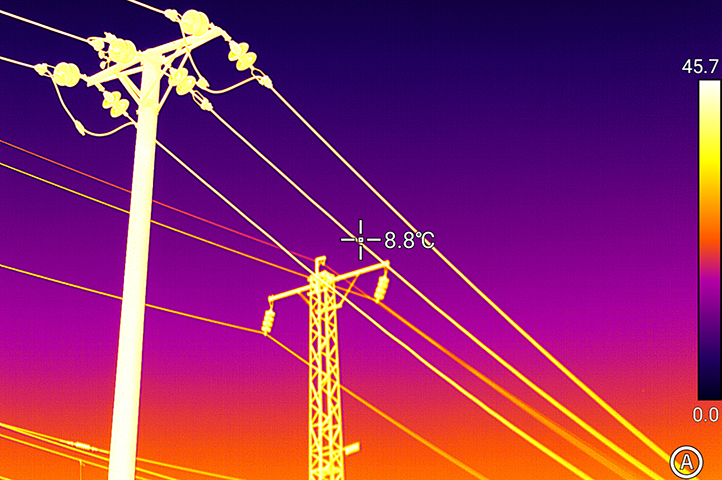

  • Temperature Inspection
    Temperature Inspection

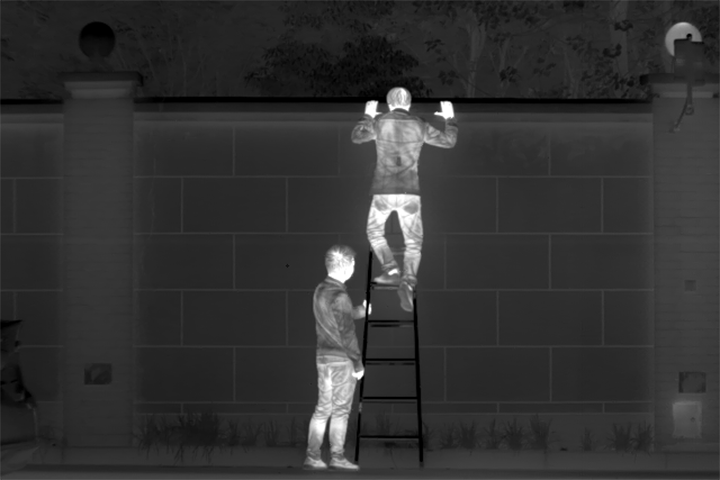

  • Security Surveillance
    Security Surveillance
  • Night Vision Observation
    Night Vision Observation
  • Medical & Epidemic Prevention
    Medical & Epidemic Prevention
Technical Specifications
Product ModelPLUG617 Uncooled Infrared CorePLUG617R Uncooled Infrared Core
Detector Performance
Resolution640 × 512
Pixel Pitch17 μm
Spectral Range8–14 μm
Typical NETD< 30 mK
Image Processing
Frame Rate9 Hz / 25 Hz / 30 Hz / 50 Hz25 Hz / 30 Hz
Startup Time10 s15 s
Analog VideoPAL / NTSC
Digital VideoRAW / YUV / BT.656 / LVDS
Expansion InterfacesUSB / VPC / CameraLink / GigE
Image AdjustmentLinear / Histogram / Hybrid (3 modes)
Digital Zoom1×–8× continuous zoom, step size 1/8
Image DisplayBlack Hot / White Hot / Pseudo Color
Image OrientationHorizontal / Vertical / Diagonal Flip
Image AlgorithmsNon-Uniformity Correction (NUC)
Adaptive Gain Control (AGC)
Intelligent Detail Enhancement (IDE)
Electrical Characteristics
Standard External Interface50-pin HRS Connector
Communication InterfaceRS232-TTL, 115200 bps
Operating Voltage Range4–6 V
Typical Power Consumption1.4 W1.5 W
Radiometric Parameters
Radiometric Operating Temperature/-10 °C to +50 °C
Temperature Measurement Range/-20 °C to 150 °C, 0 °C to 550 °C
Temperature Accuracy/±2 °C or ±2% (whichever is greater)
SDK/Windows / Linux / ARM SDK, enabling video stream parsing and grayscale-to-temperature conversion
Physical Characteristics
Dimensions (mm)44.5 × 45.95 × 36.6
Weight90 g ± 3 g
Environmental Adaptability
Operating Temperature-40 °C to +70 °C
Storage Temperature-45 °C to +85 °C
Humidity5%–95%, non-condensing
VibrationRandom vibration 5.35 g rms, 3 axes
ShockHalf-sine wave, 40 g / 11 ms, 3 axes, 6 directions

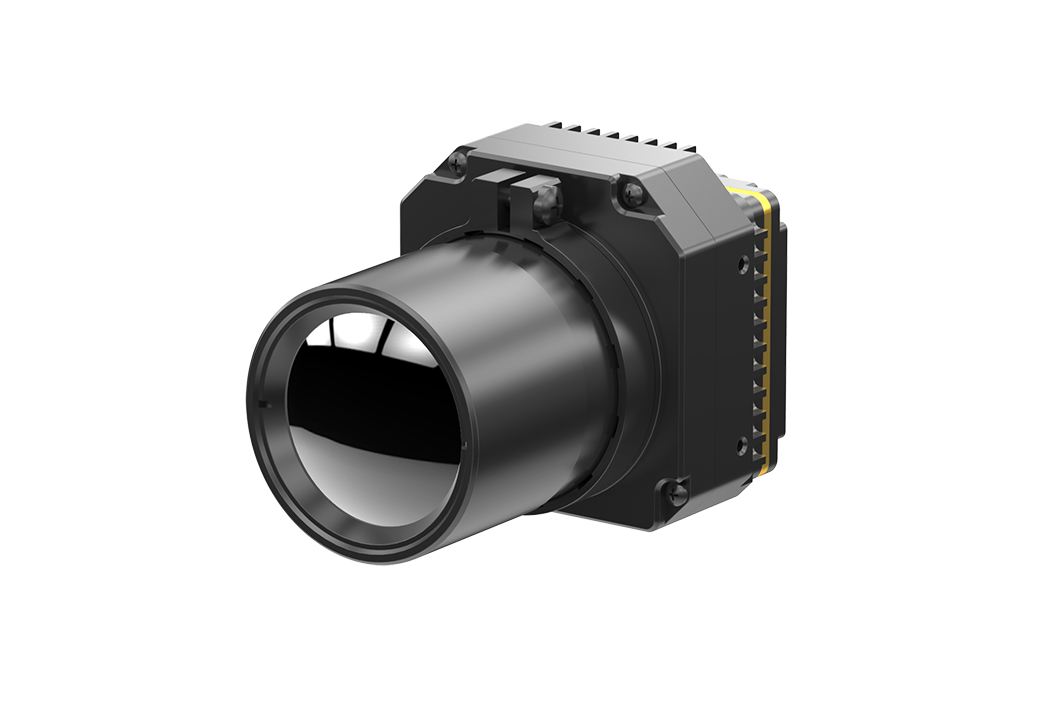

Optical Lenses
Available LensesAthermalized fixed focus: 7.5 mm / 13 mm / 19 mm / 25 mm / 35 mm / 50 mm / 60 mm / 100 mm
Motorized lenses: 75 mm / 100 mm / 150 mm
Continuous zoom lenses: 30–150 mm		Athermalized fixed focus: 7.5 mm / 13 mm / 19 mm / 25 mm
