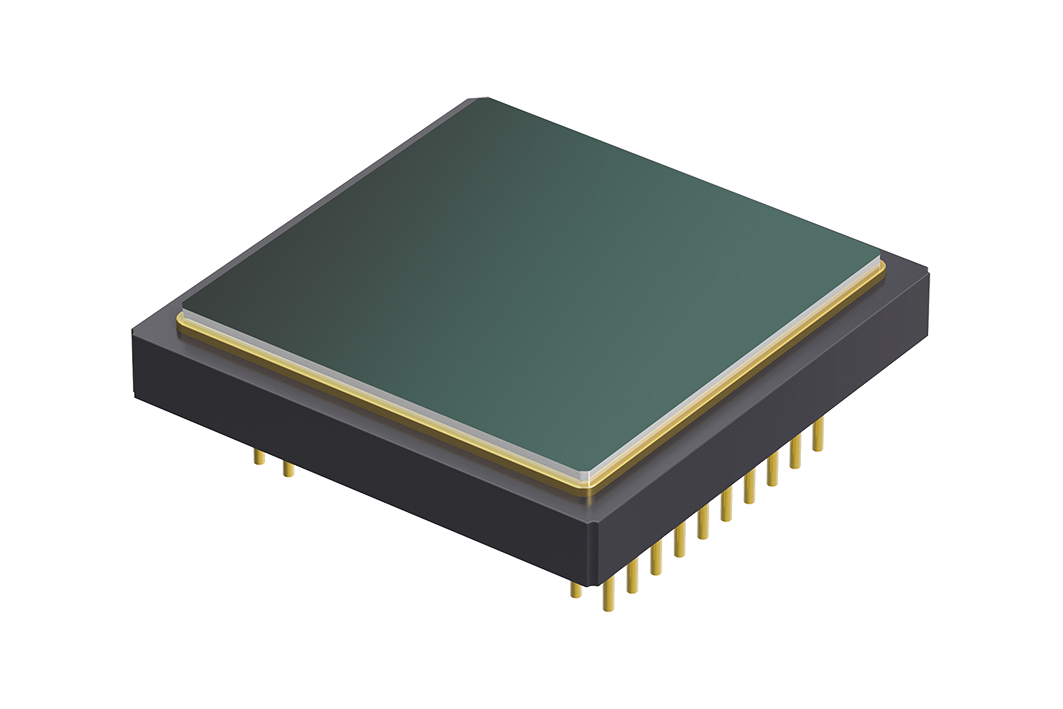

XH GST612C Ceramic-Package Uncooled Infrared Detector

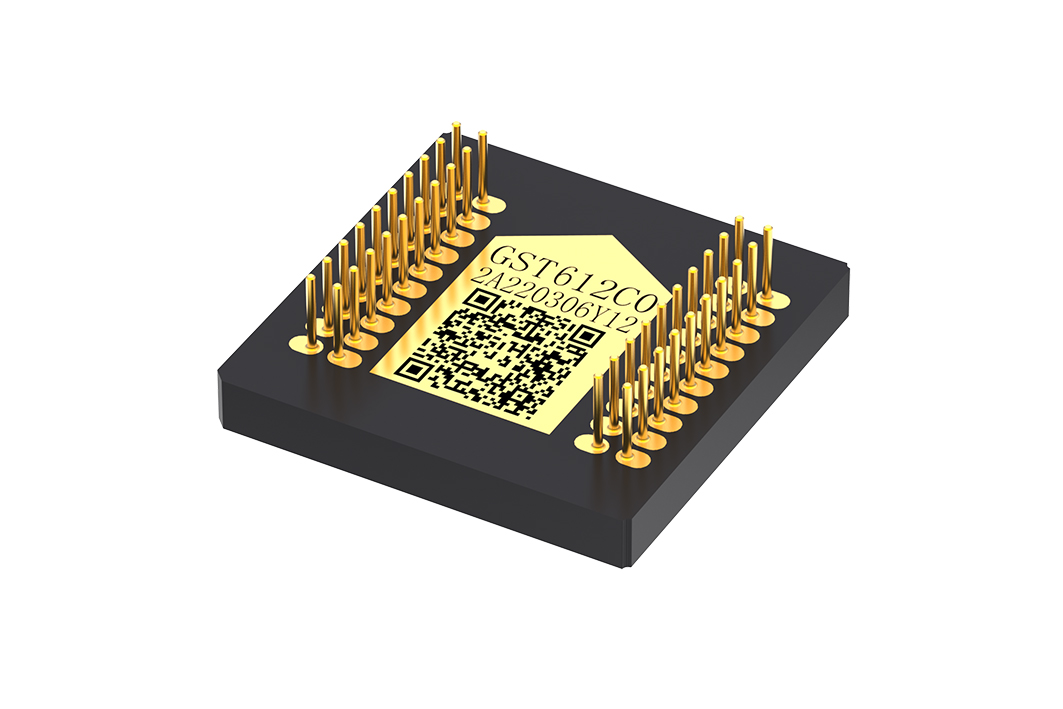

XH GST612C Ceramic-Package Uncooled Infrared Detector - 图片 2

XH GST612C Ceramic-Package Uncooled Infrared Detector

High Cost-Performance Infrared Chip Solutions

These ceramic-package uncooled infrared detectors feature high performance, low power consumption, compact size, and excellent reliability, delivering superior value for a wide range of thermal imaging applications.

Typical features include:

High image quality

TEC-free design

Optimized cost-performance ratio

分类：
Product Features

Wide Field of View with Clear Imaging

640×512 focal plane array
Typical NETD < 40 mK

Lightweight Design

Compact size: 18×16×2.75 mm (excluding connector)
Ultra-light weight: < 2 g

Consumer-Grade Applications

Mass deployment
Cost-effective infrared integration

Applications
  • Temperature Measurement & Inspection
    Temperature Measurement & Inspection
  • Security Monitoring
    Security Monitoring
  • UAV Payload
    UAV Payload
  • Night Vision Observation
    Night Vision Observation
Technical Specifications
Product ModelGST612C Uncooled Infrared Detector
Sensitive MaterialVanadium Oxide (VOx)
Array Format640×512
Pixel Pitch12μm
Spectral Range8-14μm
Typical NETD<35mK
Output SignalBuilt-in 14-bit ADC
Thermal Response Time<12ms
Maximum Frame Rate50Hz
Power Consumption≤150mW
Dimensions (mm)18.5×18.5×3.8 (excluding pin size)
Weight<4.5g
Operating Temperature-40°C ~ +85°C
