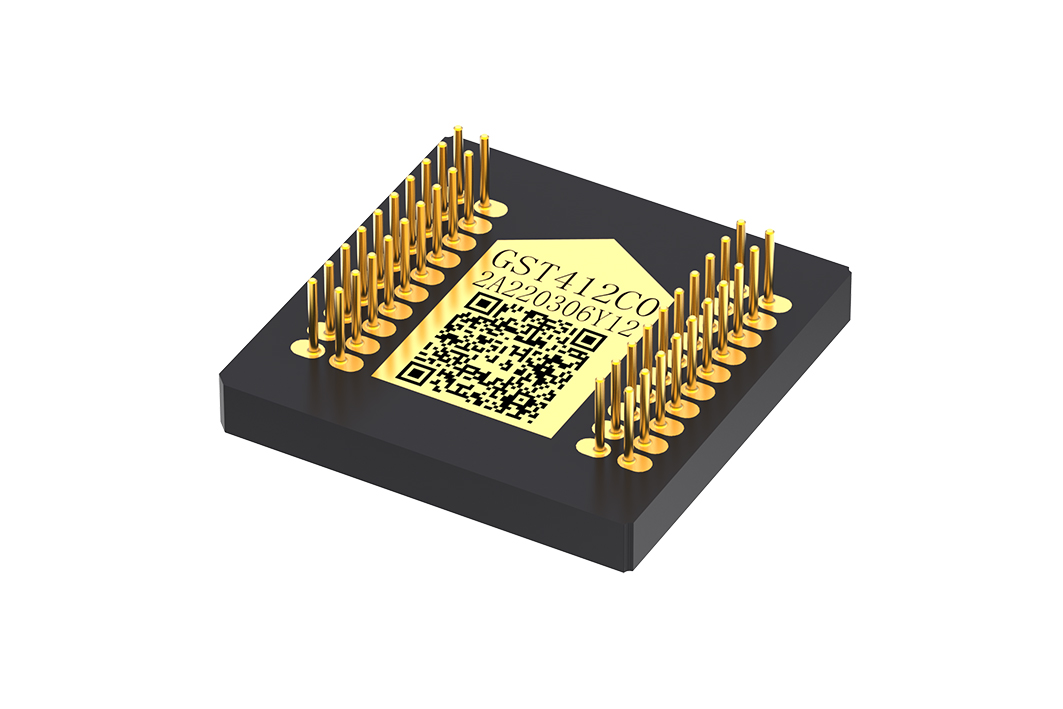

XH GST412C Ceramic-Package Uncooled Infrared Detector
XH GST412C Ceramic-Package Uncooled Infrared Detector - 图片 2

XH GST412C Ceramic-Package Uncooled Infrared Detector

High Cost-Performance Infrared Chip Solutions

These ceramic-package uncooled infrared detectors feature high performance, low power consumption, compact size, and excellent reliability, delivering superior value for a wide range of thermal imaging applications.

Typical features include:

High image quality

TEC-free design

Optimized cost-performance ratio

分类：
Product Features

High Performance

High sensitivity, typical NETD < 30 mK
Smooth imaging performance with frame rates up to 50 Hz

Compact and Lightweight

Dimensions: 18.5×18.5×3.8 mm (excluding pins)
Weight: < 4.5 g

Low Power Consumption

Power consumption < 180 mW

Applications
  • Temperature Measurement & Inspection
    Temperature Measurement & Inspection
  • Security Monitoring
    Security Monitoring
  • UAV Payload
    UAV Payload
  • Night Vision Observation
    Night Vision Observation
Technical Specifications
Product ModelGST417C Uncooled Infrared Detector
Sensitive MaterialVanadium Oxide (VOx)
Array Format400×300
Pixel Pitch17μm
Spectral Range8-14μm
Typical NETD<30mK
Output SignalBuilt-in 14-bit ADC
Thermal Response Time<12ms
Maximum Frame Rate50Hz
Power Consumption<180mW
Dimensions (mm)18×18.5×3.8 (excluding pins)
Weight<4.5g
Operating Temperature-40°C ~ +85°C
