Product Features
High-Performance Cooled Infrared Detector
640×512 / 15μm MWIR cooled infrared detector
Typical NETD ≤ 18 mK
Easy Development and Integration
CameraLink interface with 16-bit RAW output, serial control
Integrated structure with dimensions identical to the detector
High-Speed Target Capture
Adjustable output frame rate from 1 to 50 Hz
Applications
Long-Range Surveillance System
Search & Tracking System
Handheld Reconnaissance System
Aircraft Vision Enhancement System
Technical Specifications

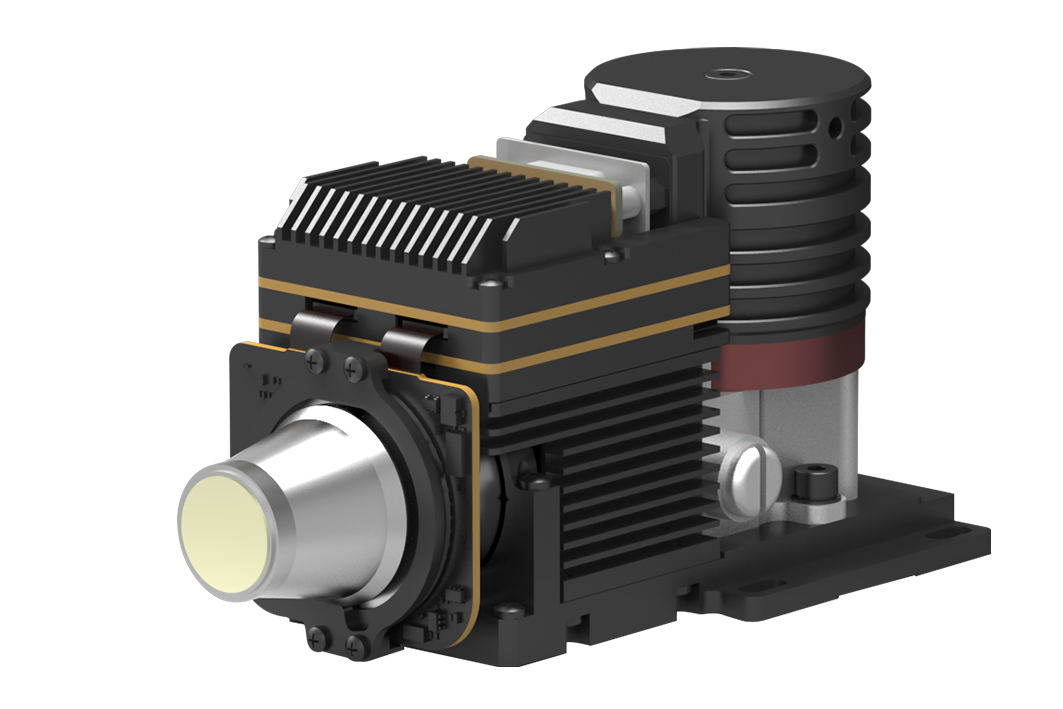

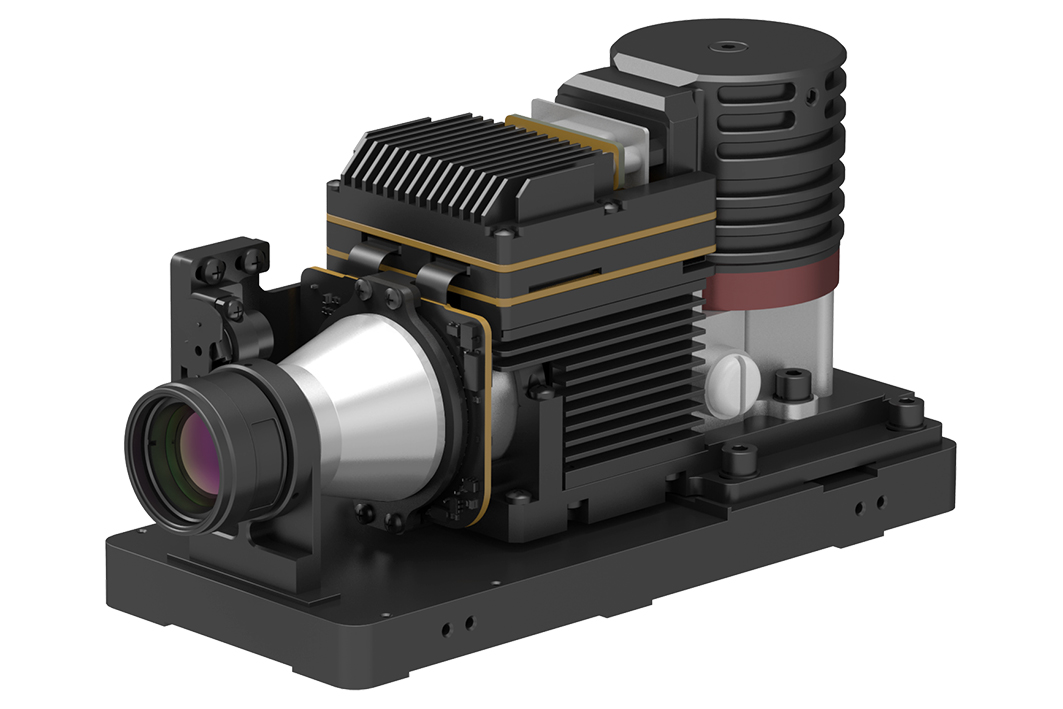

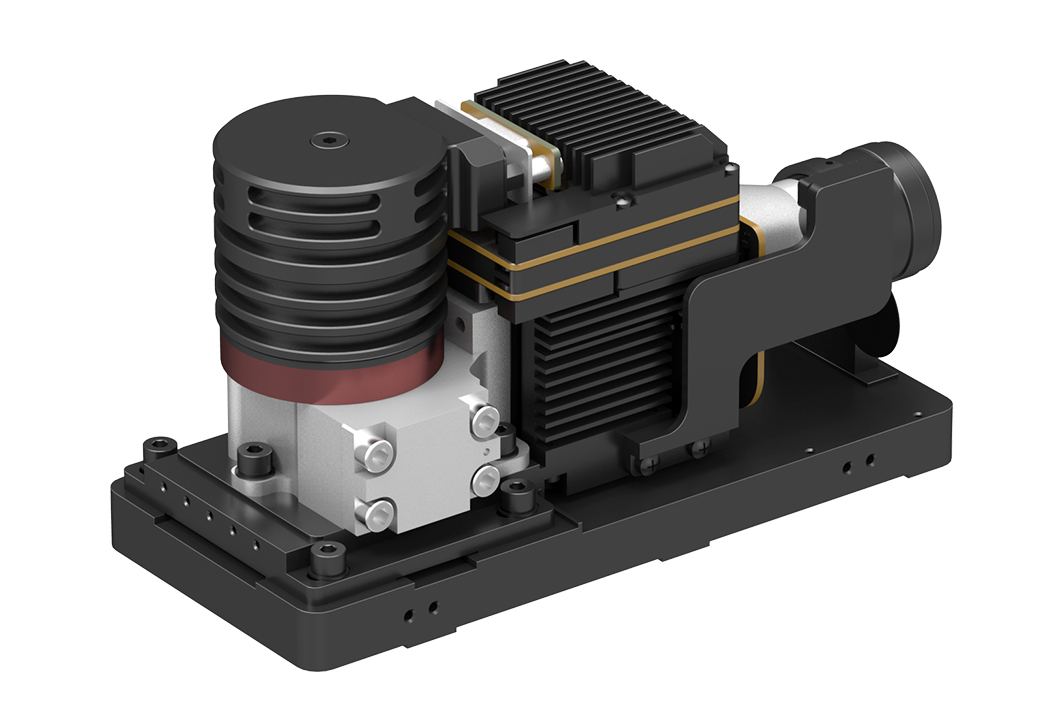

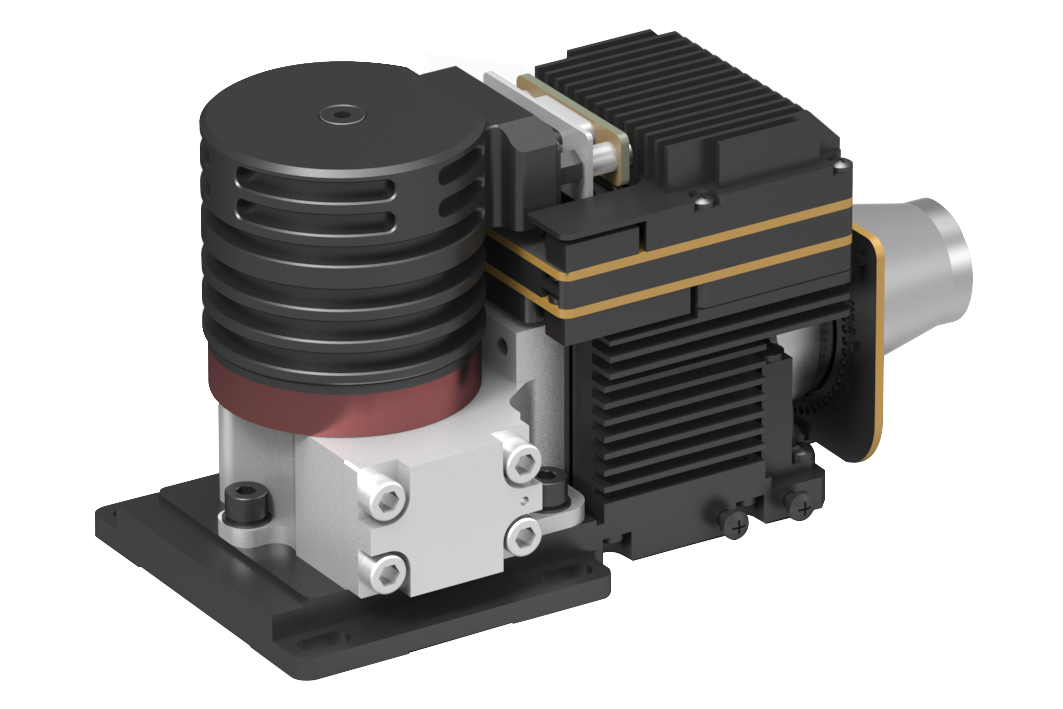

| Product Model | GAVIN330 MWIR Cooled Infrared Core |
| Performance Specifications | |
| Resolution | 320×256 |
| Pixel Pitch | 30μm |
| Cooler | RS058 |
| Spectral Response | 3.7μm ±0.2μm ～ 4.8μm ±0.2μm |
| Cool-down Time (20℃) | ≤7min |
| Typical NETD | ≤10mK |
| Image Processing | |
| Frame Rate | 50Hz / 100Hz / 200Hz |
| Gain Control | Linear / Histogram / Hybrid modes |
| Electronic Zoom | 1~8 continuous digital zoom |
| Image Orientation | Horizontal / Vertical / Diagonal flip |
| Image Algorithms | Non-uniformity correction (NUC); Adaptive gain control (AGC); Intelligent digital enhancement (IDE) |
| Electrical Characteristics | |
| Standard External Interface | J30JZ 25-pin |
| Analog Video | PAL |
| Digital Video | 16bit RAW/YUV: Cameralink output / 16bit DVP output / USB module (optional) / Gig-E network module (optional) |
| External Sync | Frame external sync: RS422 level |
| Communication | RS422, 115200bps |
| Power Supply | 20~28VDC |
| Power Consumption | 12W (stable power consumption) |
| Dimensions (mm) | 150×67×80 |
| Weight | ≤900g |
| Operating Temperature | -40°C ~ +60°C |
| Vibration Level | Vibration: National military standard vehicle high-speed transport level; Shock: half-sine wave, 40g 11ms, 3 axes × 6 directions × 3 times each |
| Optical Lens | |

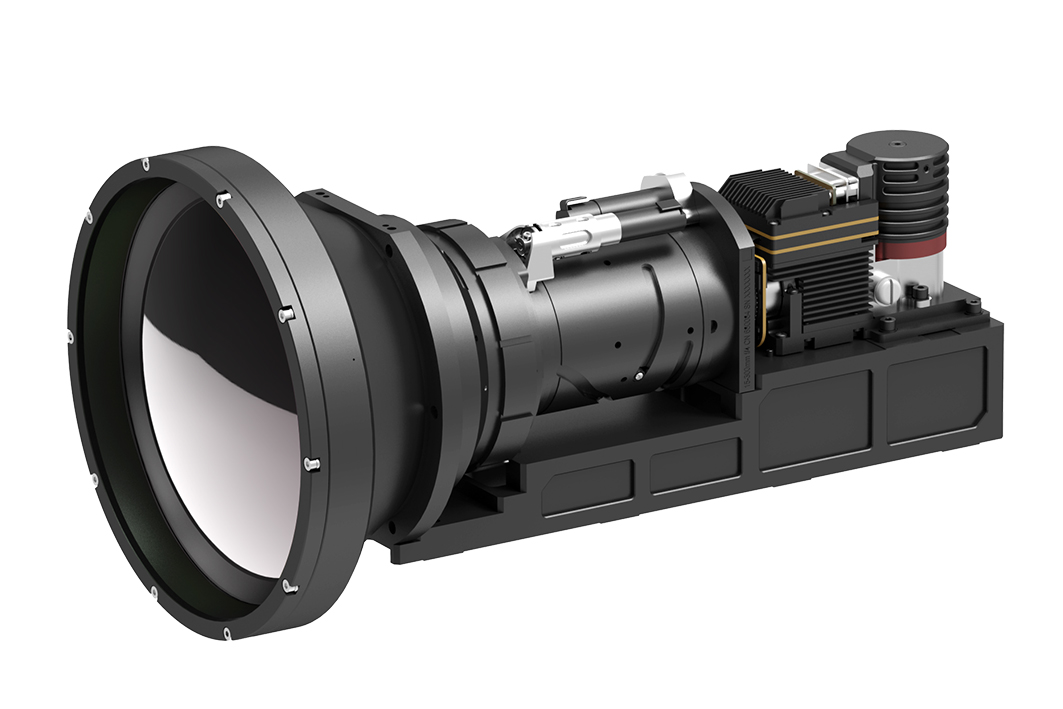

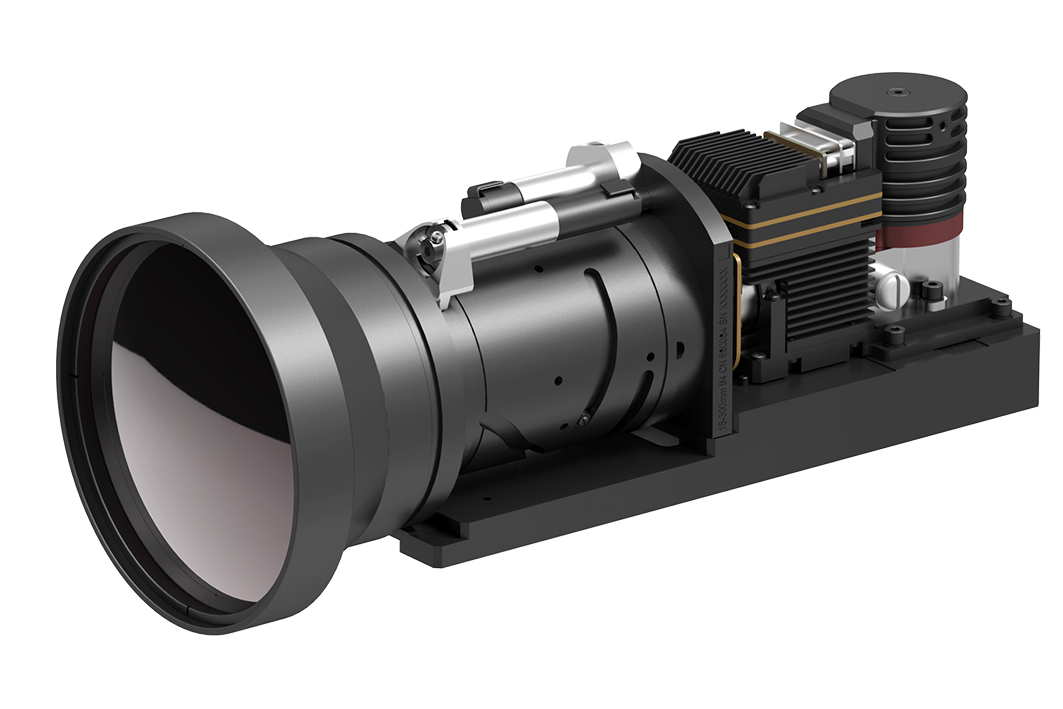

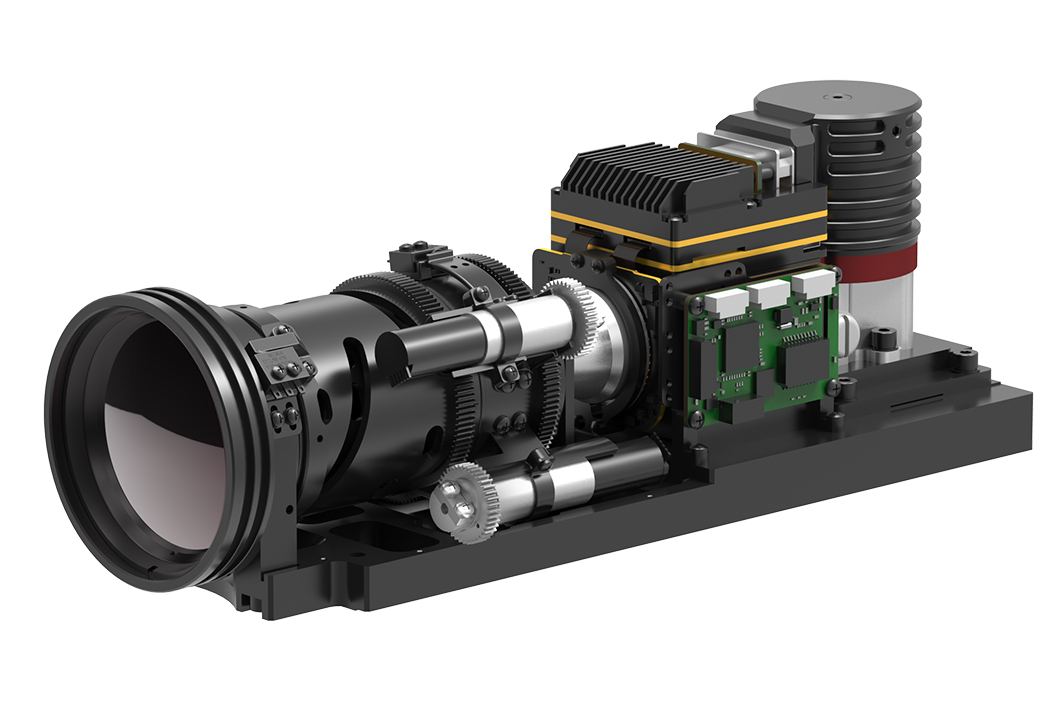

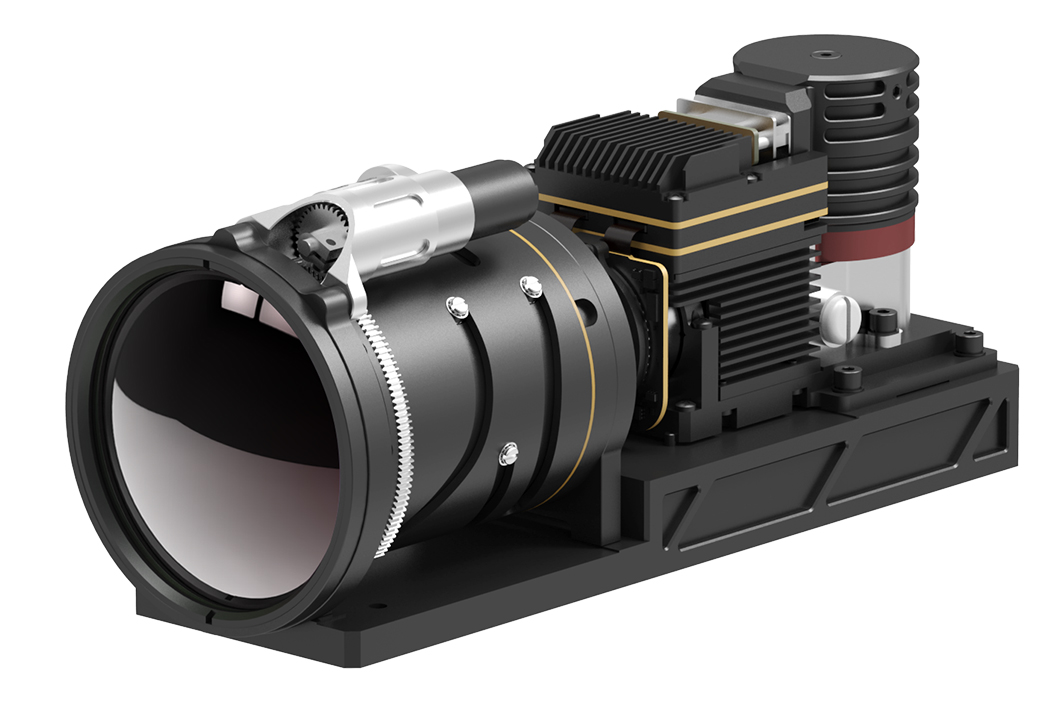

| Optional Lenses | Continuous zoom: 30~240mm/F4 15~300mm/F4 21~420mm/F4 35~690mm/F4 |
