Product Features
High-Performance Cooled Infrared Detector
640×512 / 15μm MWIR cooled infrared detector
Typical NETD ≤ 17 mK
Easy Development and Integration
CameraLink interface with 16-bit RAW output, serial control
Integrated structure with dimensions identical to the detector
High-Speed Target Capture
Adjustable output frame rate from 1 to 120 Hz
Applications
Long-Range Surveillance System
Search & Tracking System
Handheld Reconnaissance System
Aircraft Vision Enhancement System
Technical Specifications

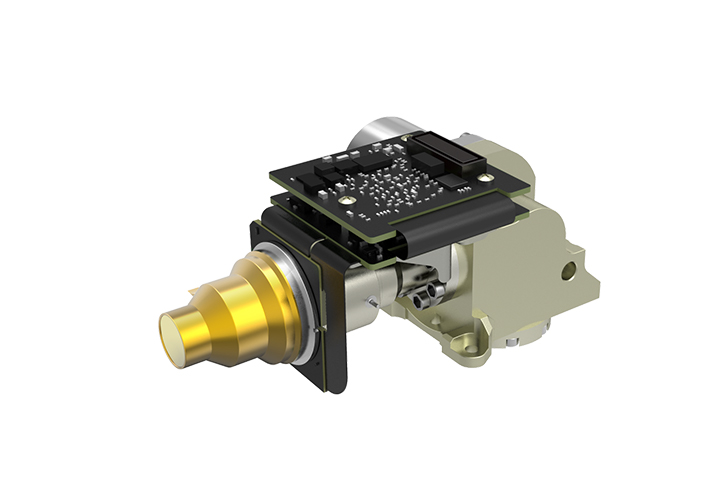

| Product Model | EYAS615B Cooled Infrared AD Module |
| Performance Specifications | |
| Resolution | 640×512 |
| Pixel Pitch | 15μm |
| Cooler | RS046 |
| Spectral Response | 3.7μm ±0.2μm ～ 4.8μm ±0.2μm |
| Cool-down Time (25℃) | ≤5.5min |
| Typical NETD | ≤18mK |
| Operating Modes | |
| Frame Rate | Adjustable 1~50Hz |
| Operating Mode | Snapshot mode; Integration mode ITR/IWR; Windowing function; Anti-blooming function |
| Electrical Characteristics | |
| Standard External Interface | QSH 60-pin |
| Digital Video | Cameralink: 16bit raw detector data output |
| External Sync | CC1: INT / frame external sync; CC2: MC external sync |
| Communication | Cameralink serial port: TFG+/- , TC+/- ; 9600bps |
| Power Supply | One imaging board power supply 5V, one cooler driver board power supply 12V |
| Power Consumption | 8W (stable power consumption) |
| Dimensions (mm) | 122×88×59 |
| Weight | ≤400g |
| Operating Temperature | -40°C ~ +60°C |
| Vibration Level | Vibration: National military standard vehicle high-speed transport level; Shock: half-sine wave, 40g 11ms, 3 axes × 6 directions × 3 times each |
