Product Features
Long-Wave Infrared Detection
Strong penetration through dust and sand
Resistant to solar and sea-surface reflection interference
Type-II Superlattice Technology
High quantum efficiency and sensitivity
Stable mass production with excellent uniformity
High-Reliability Process
High focal plane operating temperature for enhanced reliability
Applications
Long-Range Surveillance System
Search & Tracking System
Aircraft Vision Enhancement System
Handheld Reconnaissance System
Technical Specifications

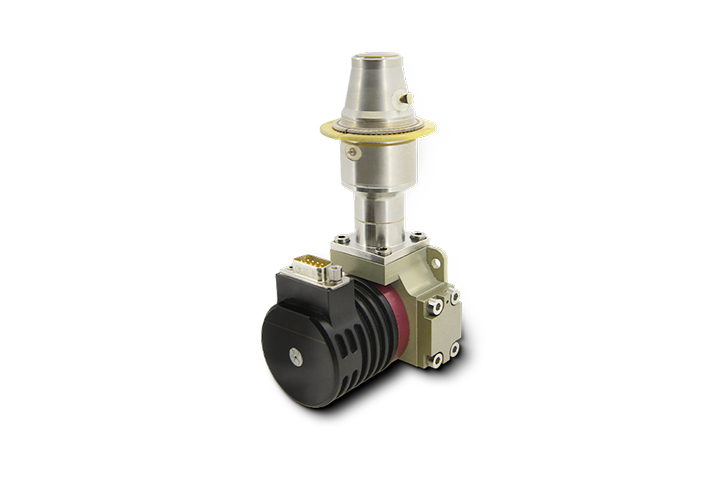

| Product Model | C330S LWIR Cooled Infrared Detector |
| Sensitive Material | Type-II Superlattice (T2SL) |
| Array Format | 320×256 |
| Pixel Pitch | 30μm |
| Spectral Range | 7.7μm ±0.2μm ～ 9.4μm ±0.3μm |
| Operating Mode | Snapshot mode; ITR integration mode; Windowing function; Anti-blooming function |
| Charge Capacity | 36Me- / 12Me- |
| Circuit Dynamic Range | ≥80dB |
| Output Channels | 1 or 4 channels; max single-channel output rate 6.6MHz |
| Typical NETD | 20mK (F2) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Configurable Cooler | RS058 |
| Stable Power Consumption | ≤8W |
| Maximum Power Consumption | ≤17W |
| Power Supply | 24V DC |
| Cool-down Time | ≤5min 30s |
| Weight | ≤600g |
| Maximum Dimensions (mm) | 142×58.5×71 |
| Operating Temperature | -45°C ~ +71°C |
