Product Features
High Compatibility and Stable Supply
Standardized interface with plug-and-play replacement
Mass production with excellent consistency
Designed for User Requirements
Customizable wavelength
Customizable F-number
Multiple Cryocooler Options
Optional RS058 / RS046H cryocoolers
Applications
Long-Range Surveillance System
Search & Tracking System
Handheld Reconnaissance System
Gas Leak Detection
Technical Specifications

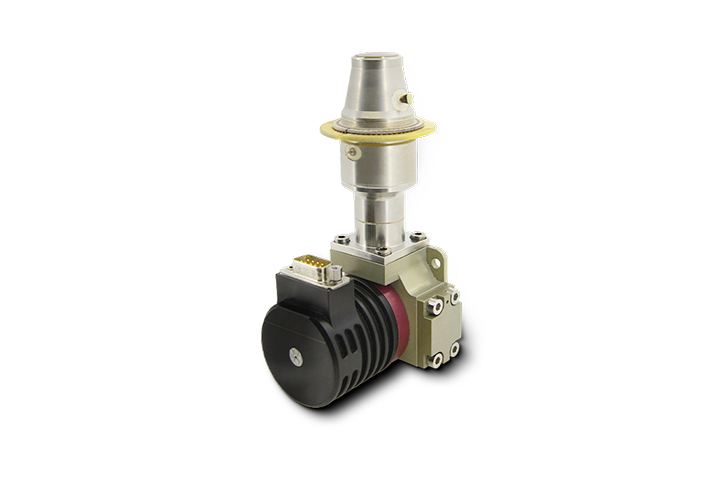

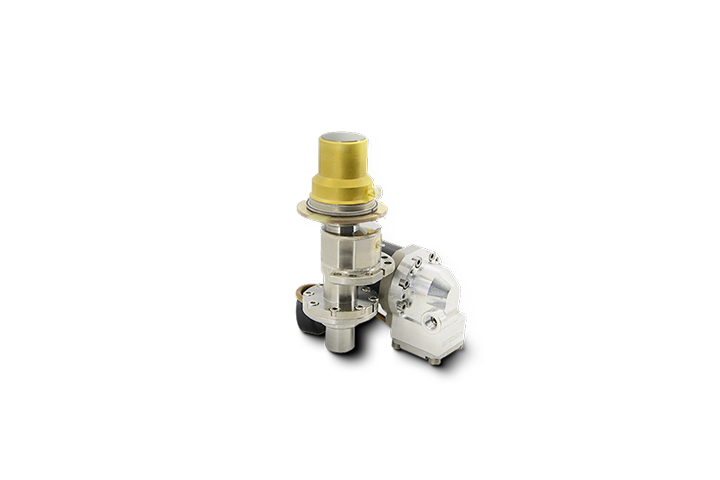

| Product Model | C330M MWIR Cooled Infrared Detector |
| Sensitive Material | Mercury Cadmium Telluride (MCT) |
| Array Format | 320×256 |
| Pixel Pitch | 30μm |
| Spectral Range | 3.7μm ±0.2μm ～ 4.8μm ±0.2μm |
| Operating Mode | Snapshot mode; ITR integration mode; Windowing function; Anti-blooming function |
| Charge Capacity | 36Me- / 12Me- |
| Circuit Dynamic Range | ≥80dB |
| Output Channels | 1 or 4 channels; max single-channel output rate 6.6MHz |
| Typical NETD | F2: 9mK F4: 15mK |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Configurable Cooler | RS058 / RS046H |
| Stable Power Consumption | ≤6W @ RS058 ≤6W @ RS046H |
| Maximum Power Consumption | ≤12W @ RS058 ≤11W @ RS046H |
| Power Supply | RS058: 24V DC RS046H: 12V / 32V DC |
| Cool-down Time | ≤6min @ RS058 ≤5min 30s @ RS046H |
| Weight | ≤600g @ RS058 ≤350g @ RS046H |
| Maximum Dimensions (mm) | RS058: 142×58.5×71 RS046H: Compressor 45×35×68, Dewar Φ33×75 |
| Operating Temperature | -45°C ~ +71°C |
